LCD Accord 650 mm * 500mm Baggage And Parcel Inspection for security control

Model: AT-6550

SECU SCAN X RAY SYSTEM offers a modern technology to secure entry checkpoints for important locations like airports, transport terminals, buildings, and so on. Our systems screen baggage and parcel, to detect contraband, weapons, dangerous and illegal items. Model AT6550 easily accommodates the inspection of small baggage and parcels. SECU SCAN X RAY SYSTEM is based on user-friendly design with ergonomic operator control panel and adjustable control panel stand. It is easy to installation and maintenance. Over 100 systems per month installed in china and abroad. SECU SCAN branded products received certifications of CE, Test report from China Ministry of Public Security and Copyright for image Operation software SPHOTO.

As a manufacturer SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LTD is an ISO 9001:2008, ISO14001:2004 and OHSMS18001 GB/T 28001-2001 (Occupational Health and Safety Management System) certified company. We have Radiation Safety license from China Environmental Protection Administration.

SECU SCAN X RAY SYSTEM is a professional security solution provider, a wise choice to governments and partners.

Specifications:

General Specification:
● Tunnel Size: 650(W)*500(H)mm
● Conveyor Speed: 0.22m/s
● Conveyor Max Load: 170kg
● Dose per Inspection <1.4Gy/h
● Resolution < 0.0787mm Copper Wire
● Spatial resolution Level: dia1.0mm,
Vertical: dia1.0mm
● Penetrate resolution: Dia 0.254mm
● Penetration: 34mm Steel
● Film Safety Guarantee ISO1600 Film
● X-ray Leakage: <0.05 μGy/h (at a distance of 5cm From external housing)

X-ray Generator:
● Generate direct: Upward
● Generate anger: 80 degree
● Anode Voltage: 100~160Kv
●Anode power: 0.4 to 1.2mA
● Cooling / Duty Cycle: Oil Cooling /100%

Image System:
● X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
● Monitor: High Resolution Color, LCD Accord, 17 inch
● Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
● Image Grey Level: 4096
● Image Max Resolution: 1024 * 1280 pixel
● Image Processing: 24bit for processing real time
● Image storage: Storage 60000 pictures in real time
● Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation
● Multi-energetic distinguish objects : organic objects in orange, inorganic objects in blue, mixture in green
● High-energy/low energy : switch from high energy to low energy
● Assist to detect drug and explosive powder

Installation Data:
● Operation temperature/Humidity: 0℃-45℃/20%-95%(non-condensing)
● Storage Temperature/Humidity: -20℃-60℃/20%-95%(non-condensing)
● Operation Power: 220VAC(±10%)50±3Hz
● Power Consumption: 1.0 KW (max), 0.7KW(working)
● Noise: <58db

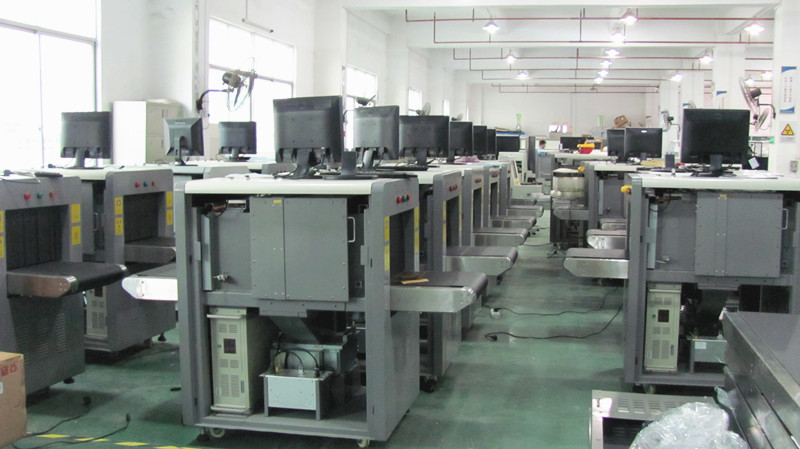

Shenzhen Security Electronic Equipment is a national high-tech enterprise committed to security equipment research & development, production and sales, also a provider of personalized security system.

We regards product quality as enterprise life, strictly controls the every manufacturing part according to ISO 9000 standard and actively approaches to international first class products.

We have exported to: England, France, Germany, Italy, Spain, Portugal, Romania, Lithuania, Honduras, Russia, Turkey, Kazakhstan, Uzbekistan, Singapore, Philippine, Malaysia, Hong Kong, Indonesia, India, Pakistan, Nepal, Bangladesh, Kuwait, Syria, Burma, Thailand, Mongolia, Cambodia, South Africa, Nigeria, Kenya, Ethiopia, Tunisia, Uganda, Rwanda, UAE, Saudi Arabia, Malawi, Gabon, Morocco, Namibia, Ghana, Mali, Egypt, Argentina, Mexico and etc, more than 60 countries.
