    Economic Single Energy X Ray Baggage Scanner Equipment With 10mm Penetration

    Ask Lasest Price
    Brand Name : SECUPLUS
    Model Number : SPX5030A
    Certification : CE ISO
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 300 sets/ month
    Delivery Time : 7 work days
    Price : Negotiable
    • Product Details
    • Company Profile

    Economic Single Energy X Ray Baggage Scanner Equipment With 10mm Penetration


    Economic Single Energy X Ray Baggage Scanner Equipment With 10mm Penetration


    High Light

    • Black white and Pseudo color display
    • Windows 7 operation system;
    • With independent industrial computer;
    • Professional multi-function operation keyboard;
    • Automatic save scanned image;
    • Reliable performance;
    • Friendly Image processing interface

    Baisc specification:


    Tunnel size504*320mm (w*h)
    Conveyor speed0.20m/s
    Conveyor height693mm
    Max Load100kgs
    Wire Resolution38AWG
    Spatial resolutionvertical:diameter 1.0mm,horizontal:diameter 1.0mm
    Penetration10mm steel panel

    X Ray Generator:


    X Ray generator anode voltage80KV
    Cooling/operation cycleOil Cooling /100%
    X ray Dose per inspection<0.16 μSv

    X Ray Image:


    Image processingPseudo color/black & white image,Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image
    ZoomVariable zoom up to X32, support continuous magnification.
    Image CheckingContinuous check back image
    Storage capacityCan store more than 100000 image
    Dose per inspection<0.125 μSv
    Radiation leakage<0.4 μSv/h(5cm away from fame),in full compliance with all international radiation safety requirements.
    Film safetyIn accordance with ASA/ISO1600 film safe standard
    System functionF programmable key,high density alarm,TIP;date/time display,baggage Count, User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training.
    Optional functionVideo surveillance system, LED prompt screen, voltage stabilizer, UPS back up

    Installation environment:


    Frame size1199*728*1197mm (L*W*H)
    Weight280kg
    Environment temperature/humidity- 3℃~+40℃±2℃ / 5%~95%(non-condensing)
    Storage temperature/humidity-43℃~+60℃±2℃ / 5%~95%(non-condensing)
    Power220VAC (+/-10%) 50+/-3HZ
    Consumption0.6KvA
    Noise Level<55db

    Application field


    • Entertainment venues, tourist attractions, office buildings, shopping malls, factories, etc;
    • suitable for security inspection of briefcase, hand luggage, postal parcels and other small package.

    Our service:


    1. Operation training program for end users
    2. Free of factory training for engineer from agents to end user
    3. Provide on-site trainning when customer requires
    4. If quality problems happen in guarantee period, our company will maintain for free.
    5. One year free spare parts and life time technical support
    6. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
    7. If you are caught in some problems when using our products, welcome to contact us at any time.

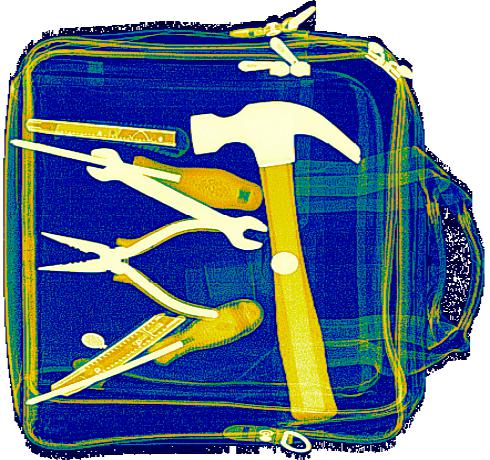

    Scanning image:
