Weapons Detection Archway Metal Detecting Equipment For Government Buildings

Model No.: AT-300A

1. Perfect weather-proofing design for outdoor use.

2. Suite for Airports, Banks, Embassies, Jai house, Entertainment environments,

Gymnasiums, Exhibition Centers etc.

Technical specification:

1. Electric current: AC100V~230V 50/60Hz

2. Power: 10W

3. Work environment: -20°C~+45°C

4. Gross Weight: 70kg

5. Outer frame: 2220mm (h) x 820mm (w) X 610mm (d)

6. Inner frame: 2000mm (h) X 700mm (w) X 610mm (d)

Characteristic:

1. 6 Pinpoint zones to precisely identify multiple target locations from head to toe.

12 zones, 18 zones optional

2. Advanced broadband detection technology: can detect ferrous and Non-ferrous articles.

3. Sensitivity adjustable from Level 0 o 299
High: Can detect a pin

Low: Detect big metal articles such as: knife, gun, and copper, aluminums,

Zinc (more than 150g), ignoring metal in belt button, shoes.

4. Shock proof to avoid false alarm

5. Sound and light alarm

6. Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms.

7. Tamper-Proof: operate program is protected by password.

8. Adjustable operating frequencies---eliminate the potential effects from X-ray units,

radios and other electrical interference sources

9. Mix distance between two Walk-thru: 0.3 meters at low sensitivity, 0.5 meters at high sensitivity

10. Harmless to pregnant woman and heart pacemaker.

11. Two LED light bars on both door panels: gives alarm corresponding to the height or human body.

12. With remote controller

13. Perfect weather-proofing design: Can work in heavy rain.

Standard:

1. In accordance with: EN60950, WN50081-1, EN50082-1

2. CE Certificate; ISO 9001:2000 Certificate,

3. National standard

Function:Walkthrough Metal Detector can easily detect weapons, such as knife and gun, and any metal article

which is hidden in human body.

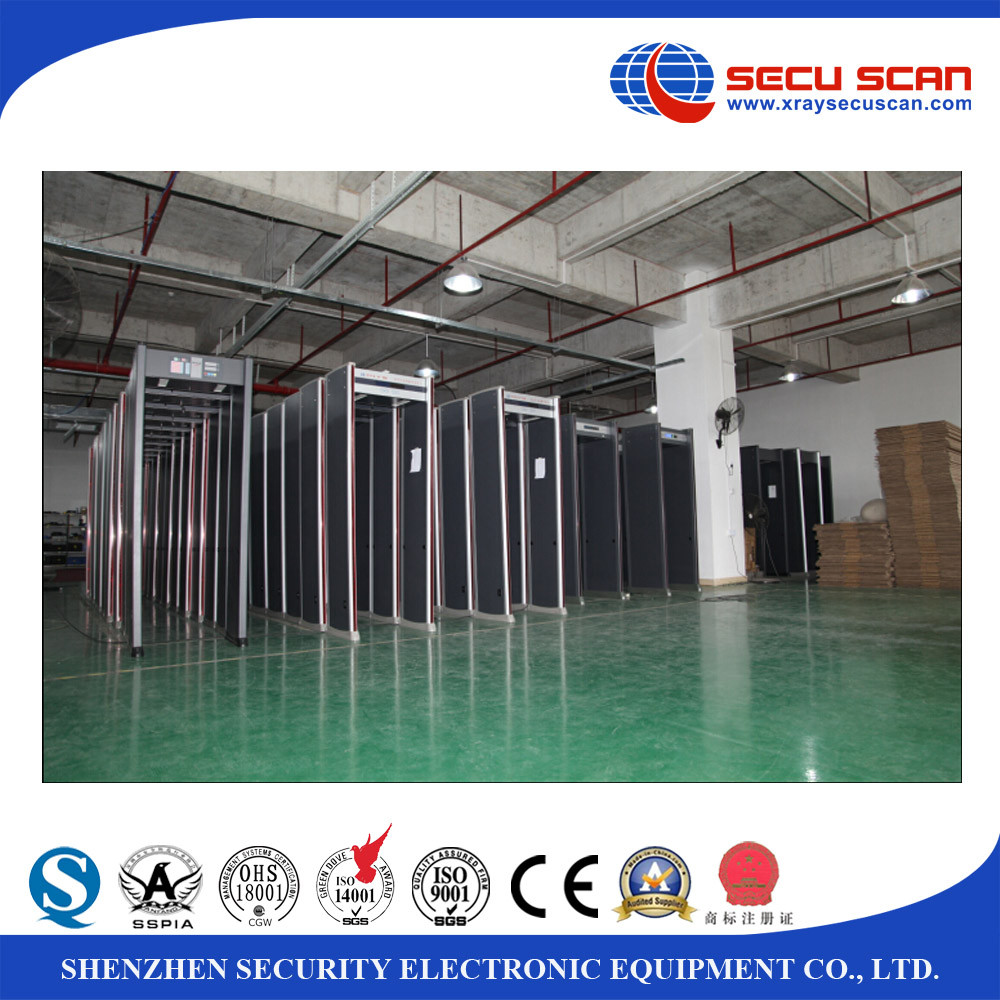

metal detector door factory :

Shenzhen Security Electronic Equipment is a national high-tech enterprise committed to security equipment research & development, production and sales, also a provider of personalized security system.

We regards product quality as enterprise life, strictly controls the every manufacturing part according to ISO 9000 standard and actively approaches to international first class products.

We have exported to: England, France, Germany, Italy, Spain, Portugal, Romania, Lithuania, Honduras, Russia, Turkey, Kazakhstan, Uzbekistan, Singapore, Philippine, Malaysia, Hong Kong, Indonesia, India, Pakistan, Nepal, Bangladesh, Kuwait, Syria, Burma, Thailand, Mongolia, Cambodia, South Africa, Nigeria, Kenya, Ethiopia, Tunisia, Uganda, Rwanda, UAE, Saudi Arabia, Malawi, Gabon, Morocco, Namibia, Ghana, Mali, Egypt, Argentina, Mexico and etc, more than 60 countries.
