Computed Tomography X Ray Baggage Scanner station security checking SPX-6550

SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Computed Tomography X Ray Baggage Scanner station security checking SPX-6550 from wholesalers

    Buy cheap Computed Tomography X Ray Baggage Scanner station security checking SPX-6550 from wholesalers
    • Buy cheap Computed Tomography X Ray Baggage Scanner station security checking SPX-6550 from wholesalers
    • Buy cheap Computed Tomography X Ray Baggage Scanner station security checking SPX-6550 from wholesalers
    • Buy cheap Computed Tomography X Ray Baggage Scanner station security checking SPX-6550 from wholesalers

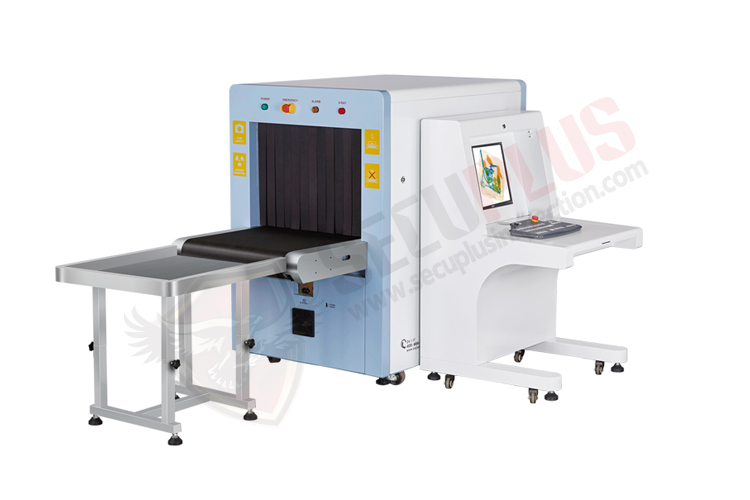

    Computed Tomography X Ray Baggage Scanner station security checking SPX-6550

    Ask Lasest Price
    Brand Name : SECUPLUS
    Model Number : SPX-6550
    Certification : CE, ISO, FCC, ROHS
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 1000 sets/year
    Delivery Time : One week when there is stock, One month when no stock.
    • Product Details
    • Company Profile

    Computed Tomography X Ray Baggage Scanner station security checking SPX-6550

    Computed Tomography X Ray Baggage Scanner station security checking SPX-6550


    General Specification


    Tunnel Size:

    650(W)*500(H)mm

    Conveyor Speed:

    0.22m/s

    Conveyor Max Load:

    170kgs

    Penetrate resolution

    Dia 0.254mm

    Resolution

    < 0.0787mm Copper Wire

    Penetration:

    34 mm Steel

    Film Safety:

    Guarantee ISO1600 Film

    X-ray Leakage:

    <1μGy/h (at a distance of 5cm From external housing)

    Pass rate:720 bags per hour

    Beam direction:

    Diagonal

    Generate angle:

    80 degree

    Anode Voltage:

    100-160Kvadjustable

    Anode power:

    0.4 to 1.2mA

    Cooling / Duty Cycle:

    Oil Cooling /100%

    X-ray Sensor:

    L-Shaped Photodiode Array (mono-energetic), 12bit Deep

    Monitor:

    High Resolution LCD Accord, 17 inch

    Image Processing:

    Edge enhancement, image strengthening, image lightening,

    reducing darkening, image returning, image retrieval.

    Image Grey Level:

    4096

    Image Max Resolution:

    1024 * 768 pixel

    Image Processing:

    24bit for processing real time

    Image storage:

    Storage 60000 pictures in real time

    Zoom:

    max 16 Times Enlarge, Whole screen continuous observation

    Operation temperature/Humidity:

    0℃-45℃/20%-95%(non-condensing)

    Storage Temperature/Humidity:

    -20℃-60℃/20%-95%(non-condensing)

    Operation Power:

    220VAC(±10%)50±3Hz

    Power Consumption:

    1.0 KW (max), 0.7KW(working)

    Noise:

    58db


    The SECUPLUS X Ray Baggage Scanner offers another way to see inside of handbags,briefcases. It popular accepted as a nonintrusively optimize security measure .


    SPX5030C give you innovative and costeffective solutions. It¡s a great help to exclude the threats and contraband.


    SPX6550 is friendly operation system, and easy to maintenance .


    SECUPLUSis together with you to antiterrorism




    Applications:


    01.railway station
    02. Transport terminals,
    03. Buildings,
    04. Factories (to find needle in clothing, shoes, bags),
    05. Courthouses,
    06. Embassies,
    07. Military installations,
    08. Prisons,
    09. Hotels,
    10. Schools ,
    11. Convention centers,
    12. Security checkpoints
    13. Special events location


    Our sevice

    All products purchased in our company are guaranteed to keep in good repair for one year.

    If quality problems happen in guarantee period, our company will maintain for free.

    Additionally, our company provides technical support and fittings for life.

    After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.

    If you are caught in some problems when using our products, welcome to contact us at any time.
