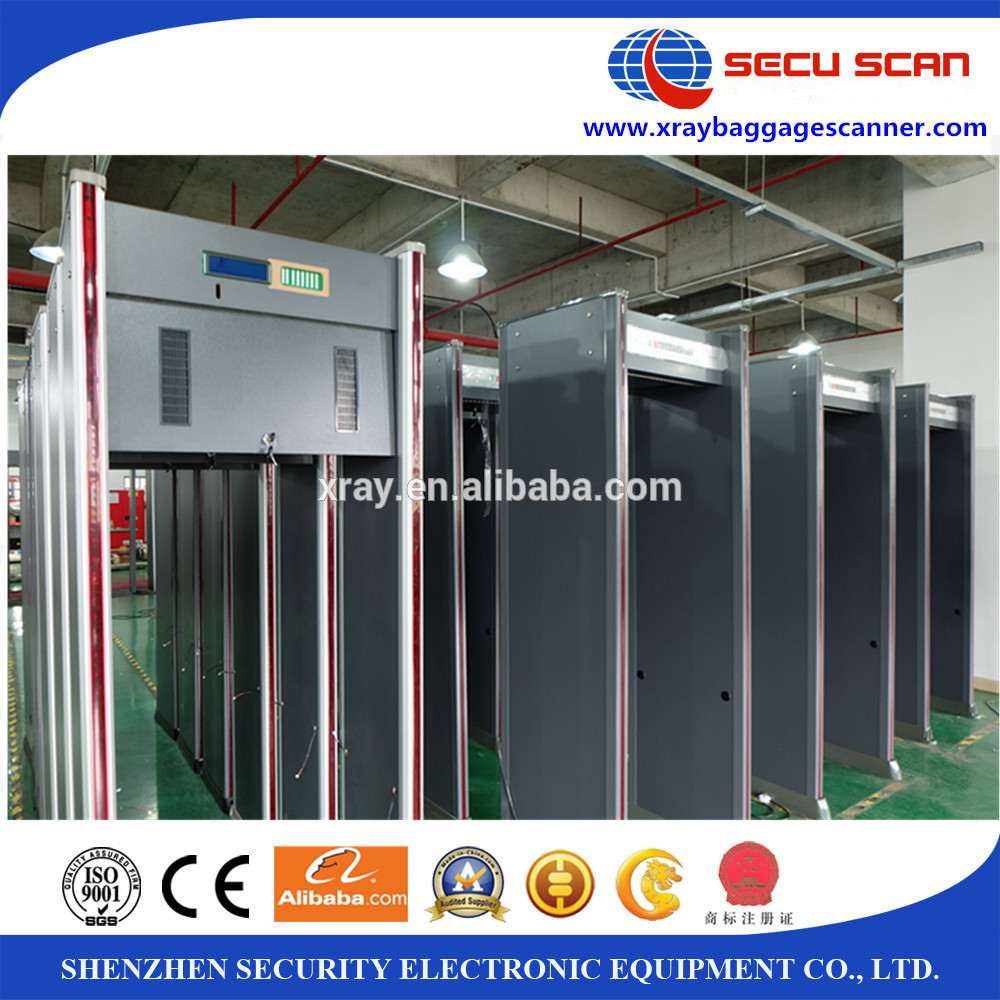

Multi Zones archway metal detector / body scanner with LCD display

Model No.: AT-IIID

1. Easy to Install, Simple to Operate
2. Suite for Airports, Banks, Embassies, Jai house, Entertainment environments, Gymnasiums, Exhibition Centers etc.
3. 6,12, 18 multi-zones adjustable
4. connect internet
5. LCD display

Technical specification:

1. Electric current: AC100V~240V 50/60Hz
2. Power: 10W
3. Work environment: -20°C~+45°C
4. Gross Weight: 70kg
5. Outer frame: 2220mm (h) x 820mm (w) X 610mm (d)
6. Inner frame: 2000mm (h) X 700mm (w) X 610mm (d)

Characteristic:

1. 6 Pinpoint zones to precisely identify multiple target locations from head to toe.
2. Advanced broadband detection technology: can detect ferrous and non-ferrous articles.
3. Sensitivity adjustable from Level 0 to 299 (300 levels)
High: Can detect a pin
Low: Detect big metal articles such as: knife, gun, and copper, aluminums,
zinc (more than 150g), ignoring metal in belt button, shoes.
4. Shock proof to avoid false alarm
5. Sound and light alarm
6. Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms.
7. Four LED light bars on both door panels: gives alarm corresponding to the height or human body.
8. Tamper-Proof: operate program is protected by password.
9. Adjustable operating frequencies---eliminate the potential effects from X-ray units, radios and other electrical interference sources
10. Mix distance between two Walk-thru: 0.3 meters at low sensitivity, 0.5 meters at high sensitivity
11. Harmless to pregnant woman and heart pacemaker.
12. With Remote controller
13. LCD screen show operate steps in English and Chinese
14. Superior Versatility: Settings designed for airports, courthouse, Sports meeting, Casino, Electronics factory and Hardware factory.
15. Networking: Remote ability with Desktop Remote Control ( Optional )

Standards:
1. In accordance with: EN60950, WN50081-1, EN50082-1
2. CE Certificate; ISO 9001:2000 Certificate / National standard

Shenzhen Security Electronic Equipment is a national high-tech enterprise committed to security equipment research & development, production and sales, also a provider of personalized security system.

We regards product quality as enterprise life, strictly controls the every manufacturing part according to ISO 9000 standard and actively approaches to international first class products.

We have exported to: England, France, Germany, Italy, Spain, Portugal, Romania, Lithuania, Honduras, Russia, Turkey, Kazakhstan, Uzbekistan, Singapore, Philippine, Malaysia, Hong Kong, Indonesia, India, Pakistan, Nepal, Bangladesh, Kuwait, Syria, Burma, Thailand, Mongolia, Cambodia, South Africa, Nigeria, Kenya, Ethiopia, Tunisia, Uganda, Rwanda, UAE, Saudi Arabia, Malawi, Gabon, Morocco, Namibia, Ghana, Mali, Egypt, Argentina, Mexico and etc, more than 60 countries.
