High Throughput Vehicle Baggage Screening Equipment 6 Mev X Ray Source

1. System Features :

(1) High throughput, 100% inspection
Can inspect 40 pcs 40GP/HQ container each hour, no dead angle inspection.
(2) High penetration, excellent image quality
The system adopts new accelerator and detector, can quickly generate clear scanning image, which reached advanced level among similar products. The penetration can reach 320mm steel.
(3) Scanned image without distortion
The system can automatically adjust the scanning frequency according to the speed of the vehicle passing through to ensure the scanning picture is not deformed.
(4) Large scanning channel, adapted to inspect all kinds of containers/ trucks.
The scanning tunnel of SECU SCAN container/vehicle inspection system is 2.6m wide, 4.6m high, can inspect all kinds of containers. Long vehicle inspection can be achieved by the method of mosaic image.
(5) Reliable radiation safety measures
To reduce the impact on the environment and equipment operators, SECU SCAN adopt a very effective means of radiation protection, the radiation level is much lower than the regulations and standards recommended by international organizations such as IAEA, WHO and ICRP, won’t produce radioactive residues.
(6) The modular system design, small footprint
The entire system adopts modular system design with compact structure and small footprint. The maximum width of the equipment is 6 meter. In addition, the modular design allows the system to relocate quickly. After transition, don’t need much assembly and commissioning, can be installed according to the actual condition.
(7) Powerful image processing functions
Image checkpoints provide zoom, pseudo-color transformation, edge enhancement, contrast adjustment, multi-image comparison, image format conversion, long image stitching and other image processing functions, enables the operator to quickly and easily identify the various types of prohibited items inside the container and make the suspect mark on the image.
(8) Friendly operation
Supports multi-point touch to help the operator better and faster recognize image.
(9) Excellent integration capabilities and process customization capabilities.

SECU SCAN owns all core technology and intellectual property rights of the product, provide users with a complete solution integrated with license plate number recognition, container number recognition, under vehicle identification, vehicle roof recognition, radioactive substances monitoring, driver’s biological characteristic scanning, driver identification, CCTV and other system. Customize solution according to use process.

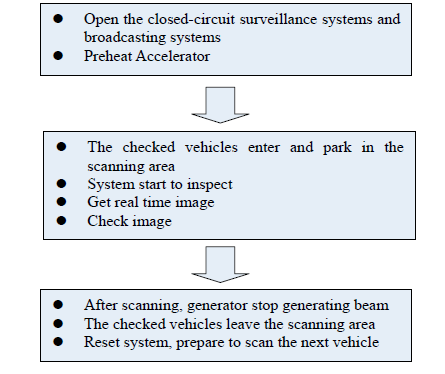

2. System Inspection Process:




3. Radiation Safety

SECU SCAN Container / Vehicle Inspection System uses low-dose cyclotron as a radiation source, has a
reliable safety interlock device. When the system is power off, it will not produce any radioactivity. Only when all the subsystems and safety interlock system are ready, high pressure requested by the system is met, the accelerator can generate beam. Meanwhile, low-dose radiation accelerator and self-shielding design of the system guarantee safety for the operator and the public. After the inspection, no any residual radioactivity will leave on the goods, ensuring radiation safety of food and photosensitive material. The system boundary dose rate and a single scan absorbed dose are lower than the regulations and standards recommended by international organizations such as IAEA, WHO and ICRP.


4. System Technical Parameters:


General Specifications:

X-ray Imaging Subsystem:

Image Inspection Subsystem:

Radiation Safety:

Image Check Station Configuration and Function:
