    Computed Tomography X Ray Scanning Machine with High Resolution

    Ask Lasest Price
    Brand Name : SECUSCAN
    Certification : CE, ISO
    Model Number : AT6550B
    Delivery Time : 7 days when we have stock,15 days when we have no stock
    Payment Terms : L/C,T/T
    Supply Ability : 300 sets/month
    Price : Negotiable
    • Product Details
    • Company Profile

    Computed Tomography X Ray Scanning Machine with High Resolution

    Computed Tomography X Ray Scanning Machine with High Resolution


    Ultra clear scanning images X-ray Baggage Scanner Model: AT6550B

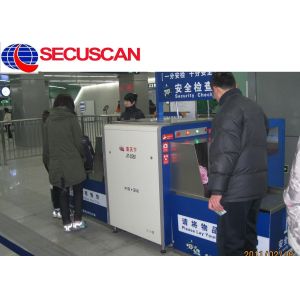

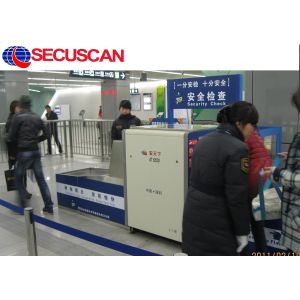

    ------Special for hotel and Metro baggage inspection


    Quick Details


    General Specification

    Tunnel Size:650(W)*500(H)mm
    Conveyor Speed:0.22m/s
    Conveyor Max Load:170kg
    Wire Resolution:32AWG to 40AWG

    Spatial resolution:

    horizontal:1.3 or 1.0mm,
    vertical: 1.3 or 1.0mm
    Penetration:38 to 40mm Steel

    Film Safety:

    Guarantee ISO1600 Film
    X-ray Leakage:<1 μSv/h (at a distance of 5cm
    from external housing)
    Pass rate:720 bags per hour

    Installation Data

    Operation temperature/Humidity:0℃-45℃/20%-95%(non-condensing)
    Storage Temperature/Humidity:-20℃-60℃/20%-95%(non-condensing)
    Operation Power:220VAC(±10%)50±3Hz
    Power Consumption:
    1.0 KW (max), 0.7KW(working)
    Noise:<58db

    X-ray Generator

    Beam direction: DiagonalDiagonal
    Generate angle:80 degree
    Anode Voltage:140Kv or (100Kv to 160Kv adjustable)
    Anode power:0.4 to 0.5mA
    Cooling / Duty Cycle:Oil Cooling /100%

    Image System

    X-ray Sensor:L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
    Monitor:High Resolution Color, LCD Accord, 17 inch
    (19 inch optional)
    Image Processing:Edge enhancement, image strengthening, image
    lightening,, reducing darkening, image returning,image retrieval.
    Image Grey Level:4096
    Image Processing:24bit for processing real time
    Image storage:Storage 60000 pictures in real time
    Zoom:max 16 Times Enlarge, Whole screen continuous observation

    Advantage:


    Assist of detecting organic and inorganic items such as
    weapons, explosives and narcotics using different colour show
