    80KV baggage x ray scanner multi language with 80Kv generator Parcel scanner

    Ask Lasest Price
    Brand Name : SECUPLUS
    Model Number : SPX-5030A
    Certification : CE ISO FCC ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 300 sets/ month
    Delivery Time : 7 working days after got your full payment
    • Product Details
    • Company Profile

    80KV baggage x ray scanner multi language with 80Kv generator Parcel scanner

    80KV baggage x ray scanner multi language with 80Kv generator Parcel scanner


    Application field

    1. Entertainment venues, tourist attractions, office buildings, shopping malls, factories, etc;
    2. Suitable for security inspection of briefcase, hand luggage, postal parcels and other small package.

    Technical parameters


    Tunnel size504*320mm (w*h)
    Conveyor speed0.20m/s
    Conveyor height693mm
    Max Load100kgs
    Wire Resolution38AWG
    Spatial resolutionvertical:diameter 1.0mm,horizontal:diameter 1.0mm
    Penetration10mm steel panel
    Monitor17inch,resolution 1280*1024
    X Ray generator anode voltage80KV
    Cooling/operation cycleOil Cooling /100%
    X ray Dose per inspection<0.16 μSv
    Image processingPseudo color/black & white image,Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image
    ZoomVariable zoom up to X64, support continuous magnification.
    Image CheckingContinuous check back image
    Storage capacityCan store more than 100000 image
    Dose per inspection<0.125 μSv
    Radiation leakage<0.4 μSv/h(5cm away from fame),in full compliance with all international radiation safety requirements.
    Film safetyIn accordance with ASA/ISO1600 film safe standard
    System functionF programmable key,high density alarm,TIP;date/time display,baggage Count, User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training.
    Optional functionVideo surveillance system, LED prompt screen, bi-direction scan, voltage stabilizer, UPS back up
    Frame size1199*728*1197mm (L*W*H)
    Weight280kg
    Environment temperature/humidity- 3℃~+40℃±2℃ / 5%~95%(non-condensing)
    Storage temperature/humidity-43℃~+60℃±2℃ / 5%~95%(non-condensing)
    Power220VAC (+/-10%) 50+/-3HZ
    Consumption0.6KvA
    Noise Level<55db

    Advantages


    Windows 7 operation system;

    With independent industrial computer;

    rofessional multi-function operation keyboard;

    Automatic save scanned image;

    Reliable performance;

    Friendly Image processing interface

    Single energy penetration system;

    New radiation protection technology;

    TIP program;

    Clear and distinct image;

    Scanned imaged can zoom up to 64 times

    Integrated structure design, refinement appearance


    Our Service
    Operation training program for end users
    Free of factory training for engineer from agents or end user
    One year free of spare parts
    Life time technical support

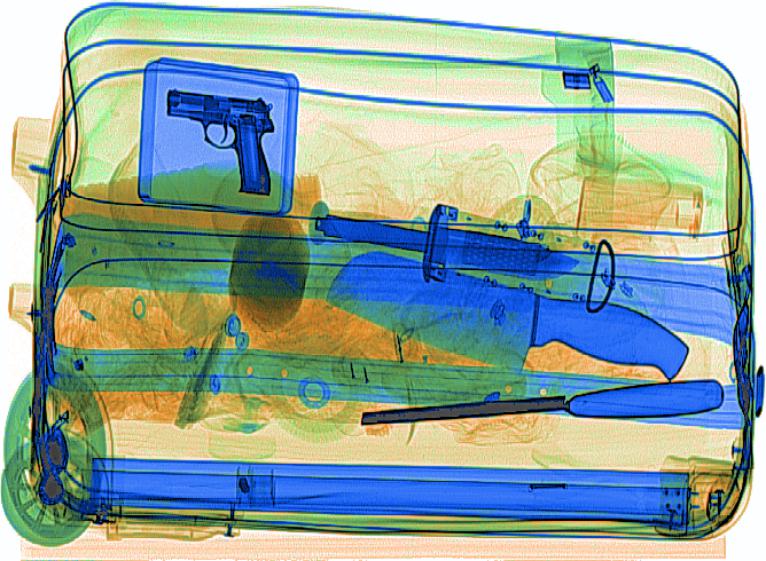

    Scan Image
