33/45 Zones Walk Through Scanner For Airport , Arch Metal Detector Body Scanner

Fit for outdoor use:

Single, 8, 16, 24zones(33,45zones optional)

MBSU backup battery

DSP technology, automatically calibration

Weather-proof design( Aluminum Case)

LCD display

Technical specification:

Characteristic:

Self-diagnostic procedures

Input MBSU battery backup, in time power transfer

Modular structure easy for after sales service

Automatically adapt to the working environment

Auto scan environmental interference at site

LCD friendly operation interface for user

Operation way: remote control

Two or four LED light bars on both door panels: gives alarm corresponding to the height or human body.

Detect zone: single, 8,16,24zones(33,45zones optional

Sensitivity adjustable from Level 0 to 300

High: Can detect a clip

Low: Detect big metal articles such as: knife, gun, and copper, aluminums, zinc (more than 150g), ignoring metal in belt button, shoes.

Shock proof to avoid false alarm

Sound and light alarm

Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms.

Tamper-Proof: operate program is protected by password.

Adjustable operating frequencies---eliminate the potential effects from X-ray units, radios and other electrical interference sources.

Connect with computer, camera, turnstile(Optional)

Inner size as 76cm width(less false alarm for big body passagers)

Mix distance between two Walk-thru:0.3 meters at low sensitivity, 0.5meters at high sensitivity

Harmless to pregnant woman and heart pacemaker

Standards &Certificates
ISO9001 ●ISO14001 ●HSMS18001 ●CE
Certificate from Ministry of Public Security Safety and Police Electronic Products Quality Inspection Center
In accordance with: EN60950, WN50081-1, EN50082-1
Electric safety: EN60950
Anti-interference standard: EN50082-1

Related Products
X-ray Baggage Scanner SPX6550

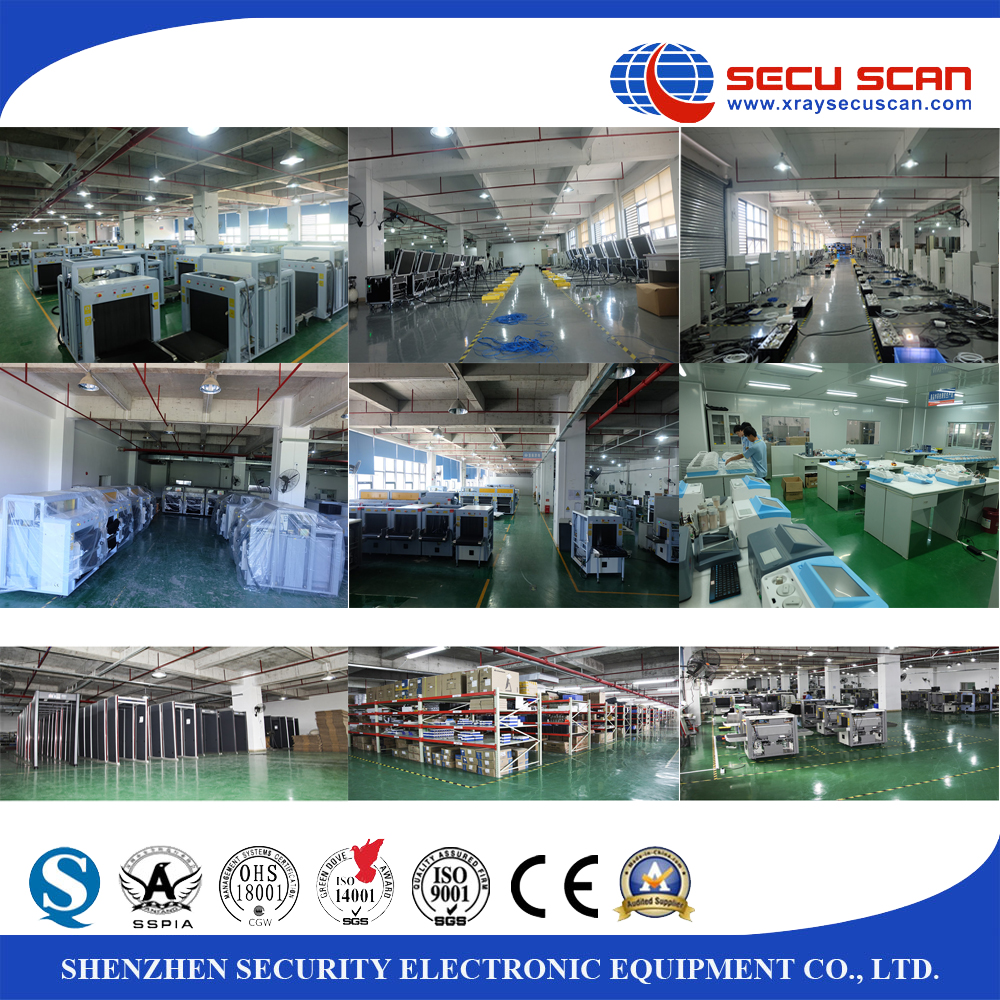

Our Factory
Our core competencies is
X ray baggage scanner
Walk through metal detector
Hand Held Metal Detector
Under vehicle surveillance system
Explosives/drug detector
Dangerous Liquid scanner
Turnstiles
By the way, if you have any other good idea, please keep us posted.Thanks.



Our Service:
Operation training program for end users
Free of factory training for engineer from agents or end user
One year free of spare parts
Life time technical support

Shenzhen Security Electronic Equipment is a national high-tech enterprise committed to security equipment research & development, production and sales, also a provider of personalized security system.

We regards product quality as enterprise life, strictly controls the every manufacturing part according to ISO 9000 standard and actively approaches to international first class products.

We have exported to: England, France, Germany, Italy, Spain, Portugal, Romania, Lithuania, Honduras, Russia, Turkey, Kazakhstan, Uzbekistan, Singapore, Philippine, Malaysia, Hong Kong, Indonesia, India, Pakistan, Nepal, Bangladesh, Kuwait, Syria, Burma, Thailand, Mongolia, Cambodia, South Africa, Nigeria, Kenya, Ethiopia, Tunisia, Uganda, Rwanda, UAE, Saudi Arabia, Malawi, Gabon, Morocco, Namibia, Ghana, Mali, Egypt, Argentina, Mexico and etc, more than 60 countries.
