    Police Use Portable X Ray Baggage Scanner With Industrial Ccd Camera

    Ask Lasest Price
    Brand Name : SECU PLUS
    Model Number : SPX-3025P
    Certification : CE ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 200 sets per month
    Delivery Time : 10 working days
    • Product Details
    • Company Profile

    Police Use Portable X Ray Baggage Scanner With Industrial Ccd Camera

    Police Use Portable X Ray Baggage Scanner With Industrial Ccd Camera
    Product Introduction SPX-3025P portable X-ray scanner has clear image and compact and lightweight design. Using high-resolution digital imaging technology; integrated industrial CCD camera and advanced digital display system. Applicable to security inspection, criminal investigation, smuggling and factory product quality testing.

    Technical characteristics

    • Dimensional imaging, accurate display of dangerous goods location and internal structure
    • Dynamically capture images, support playback of dynamic video
    • Scanning images are clear, the resolution is high and the imaging speed is fast. Use CCD industrial camera;
    • High capacity battery life, meet the field operations
    • Super software features: easy to achieve multi-touch gestures, physical size measurement, continuous image zoom, multi-effect image processing
    • Security upgrades: provides X-ray delay and safety protection to ensure operator safety
    • Modular design, easy maintenance

    Product Specification

    Wire resolution40AWG (dia 0.787mm copper)
    Penetration20mm steel/150mm aluminum
    Image stationLenovo Flex3-14, touch screen 14.0 inches; HD LED 1366 * 768 resolution; windows 8 operating system; intel core i5-6200U; 4GB memory; 500GB hard drive; weight 1.85kg
    Sensor typeIndustrial CCD camera
    Imaging array1280*960 resolution
    Effective imaging area304.8*252mm
    data communicationWired transmission
    Image acquisition time1-2s
    X ray tube voltage100kv (120kv optional)
    X ray source current1mA
    X ray source weight9kgs
    Image processingEdge enhancement, super penetration, local enhancement, histogram equalization, anti-color display, black and white display, pseudo-color display, relief display.
    Area selection and enlargementUnlimited continuous magnification
    Storage capacityAt least 10000 images
    Image displaySupport dynamic images
    System functionDate / time display, historical image preview, user management, image storage and retrieval, emergency stop operation, device status display.
    Outline DimensionsX ray generator: 482*215*178mm (L*W*G)
    Detection board : 462*366*164mm (L*W*G)
    Total weight15kgs
    Operating temp.-15ºC~+50ºC
    Storage temp.-40ºC~+70ºC
    BatteryRechargeable lithium ion battery (Supports 400 image captures)
    Other function(optional)Print the image and connect network


    Related Products

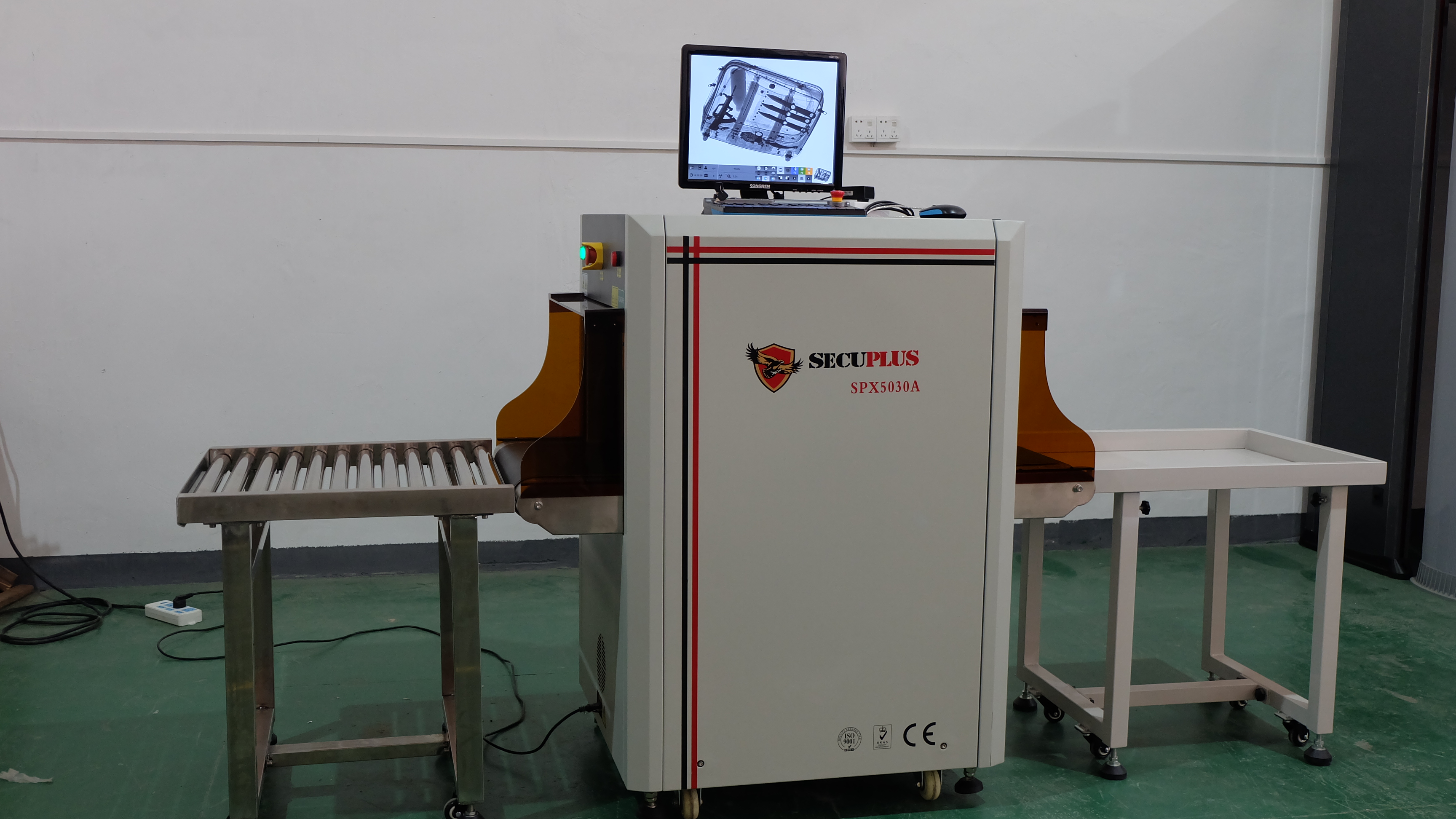

    X ray Baggage Scanner SPX-5030A
