IP68 under vehicle surveillance system, under vehicle scanning
system security
Advantage of UVIS under vehicle scanner:
1. No need to park vehicle, can bear speed below 30km/h

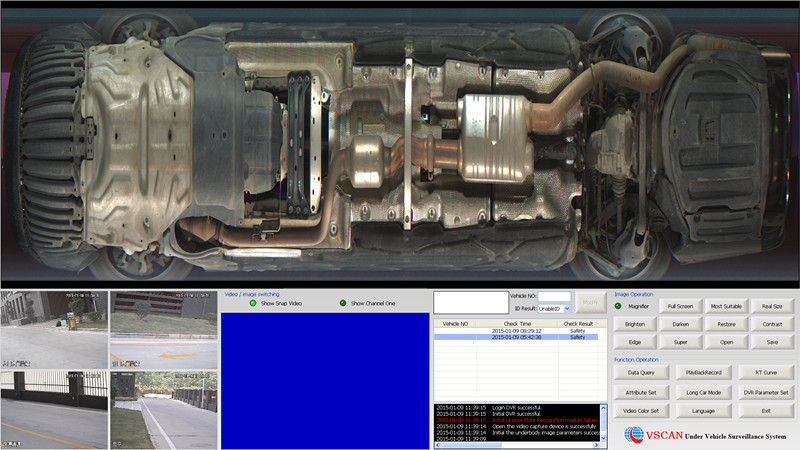

2. Whole image display ion monitor
3. Operator can zoom and save image
Features:
1. Multi entrance management model, management, and statistics of
entering and exiting vehicles
2. Auto digital line scan, high-resolution undercarriage imaging.
3. High automation, easy to be used
4. Applicable to variety of vehicles, wide vision.
5. Test will be completed during the vehicle maneuvers without
stopping, adapted to different speed.
6 . Undercarriage image can be stored, retrieved, searched or
compared with other images.
7. Avariety of image processing methods: enlarge, stretching and
cutting.
8. ALPR-Automatic License Plate Recognition and RFID technology.
associative storage of various vehicle information and
undercarriage images.(Optional)
Main TechnicaIndexes of under vehicle system:

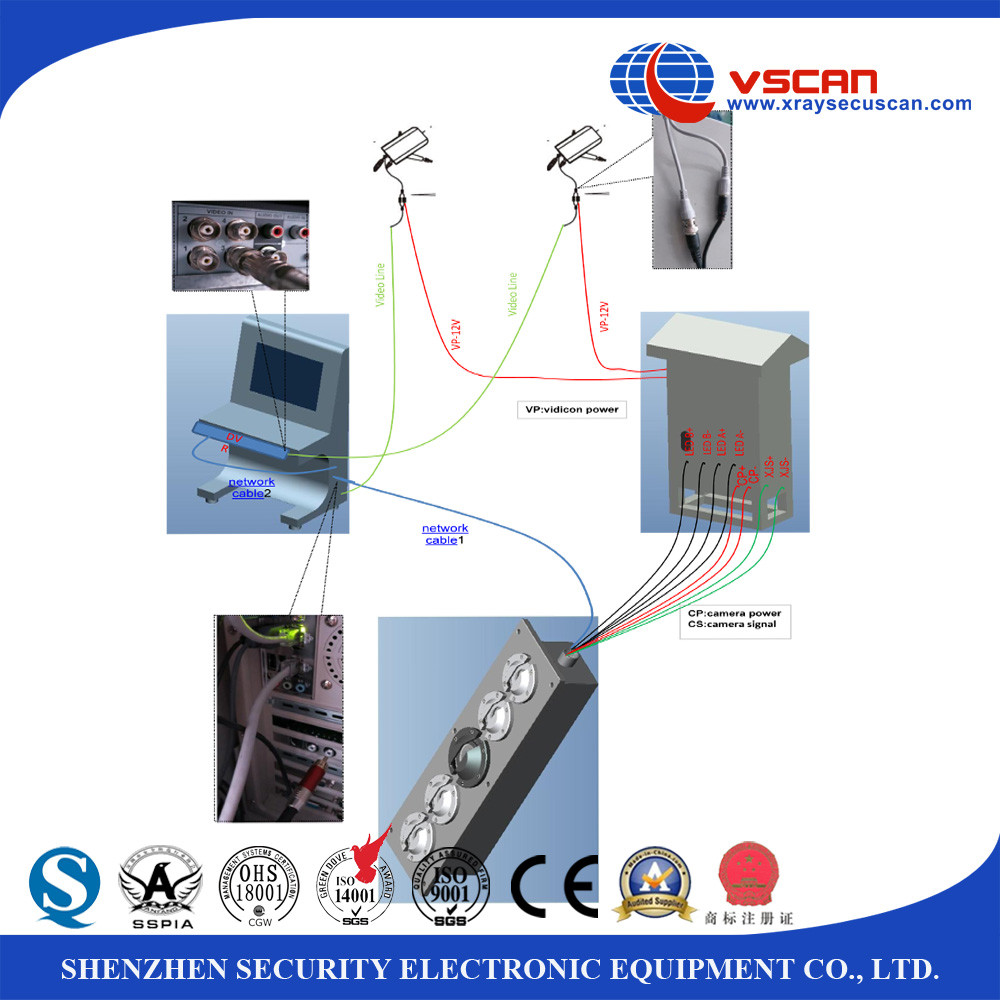

Embedded Screening Part
1. Camera: Sensor: line scans CCD, Resolution:5000*2048 pixels, Power Supply: 24VDC, 3A
2. Illumination: LED, Power Supply: 24VDC,150W
3. Size: 1200mm x 350mm
4. Operating Temperature Range:-20 degree to +70 degree
Controller
1 Input: 2 channels induction coil2 Output: 1 Channel switch type 12VDC
3 Communication port: RS485, Ethernet(Optional)
4 Operating Temperature: -10 degree to 50 degree
System Host
1 . Brand: Grantech (SYM76941VGGA)2 . CPU: Intel(R)Celeron(R)CPU E3400@2.6GHz 2.59 GHz
3 . Memory:2G( optional 4G)
4 . Graphics:512M
5 . Hard Disk:SATA2 Hard Disk 500G
6 . Dual LAN (At least one Intel Gigabit)
7 . USB2.0 (Up to 2 pieces)
8 . Monitor: 22inch LCD, resolution up to 1920*1080
9 . Scene Video Record: 4 channel, Compression algorithm of scene video: H264
Advantages:1 VSCAN Under vehicle surveillance system mainly adopt to inspect
the beneath part of a variety of vehicles.
2 It can quickly and accurately identify threats/ contraband/
smuggling of persons hiding at the bottom.
3 UVSS greatly improved vehicle safety inspection speed and
accuracy, reduce investment in human resources.
VSCAN AT3300 UNDER VEHICLE INSPECTION SYSTEM FOR AIRPORT
