High Automation Under Vehicle Surveillance System Portable SPV-3000 UVSS , UVIS

Features:

1. Automatic digital line scan camera, with high-resolution and clarity of the image.
2. The complete image of under vehicle scanning, without any omissions,
3. and the image is clear, complete, no distortion, can be clearly observed that
4. the object is not less than 2mm in diameter.
5. Preparation of inspection processes to meet a variety of on-site needs.
6. Multiple scene image monitoring, recording function.
7. Multi-language user interface design.
8. Strong scalability to easily achieve a variety of system linkage control.
9. (Optional)ALPR(Automatic Licence Plate Recognition)
10. Optional Multiple devices networked control functions

System Host:

• Brand: Grantech (UFO6377H-SP1-953)
• CPU: Intel® Core(TM) 2 Duo CPU P8600@2.4GHz or higher
• Memory:2G( optional 4G)
• Graphics:Inter(R) Gen 5.0 Integrated Graphics Engine
• Hard Disk:SATA2 Hard Disk 500G
• Dual LAN (At least one Intel Gigabit)
• USB2.0 (Up to 4 pieces)
• Monitor: 22inch LCD, resolution up to 1920*1080

Technical parameters:

1. Vertical resolution of the image: 5000*2048 pixels
2. Check the width viewing angle: < 4 meters
3. Speed of vehicle: < 30km/h with ALPR(Automatic Licence Plate Recognition)

< 70km/h without ALPR(Automatic Licence Plate Recognition)
4. Effective Field of View(FOV):less than 170°
5. Auxiliary light: 100W
6. Weight capacity: <20T
7. Water-proof grade: Ip68
8. Scanning device weight: 24KG
9. Scanning device volume: 450mm×400mm×88mm
10. Communication interface: RS232/RS422
11. Operating Temperature: -10℃ to 55℃
12. Storage temperature: -40℃ to +75℃
13. Operating voltage: 110-240V AC, 50-60HZ

Work shop:

Image:

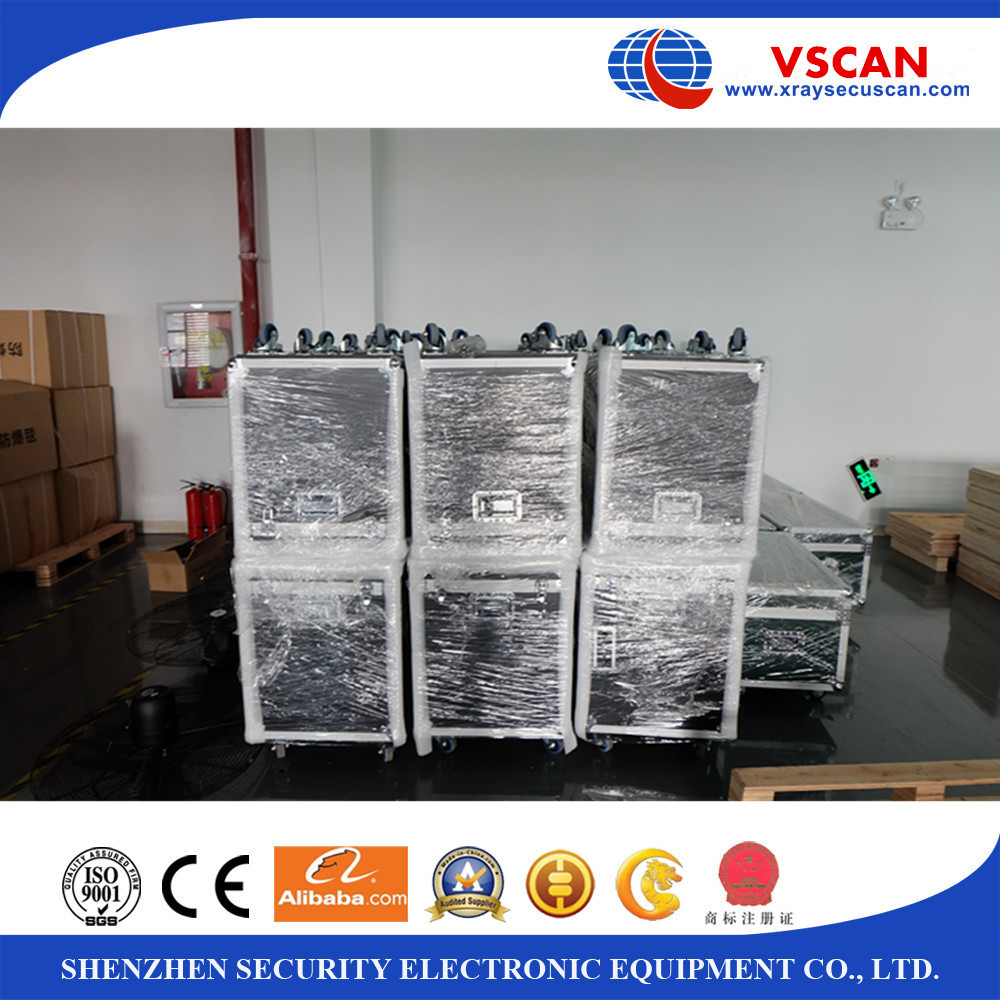

Packing:

Shenzhen Security Electronic Equipment is a national high-tech enterprise committed to security equipment research & development, production and sales, also a provider of personalized security system.

We regards product quality as enterprise life, strictly controls the every manufacturing part according to ISO 9000 standard and actively approaches to international first class products.

We have exported to: England, France, Germany, Italy, Spain, Portugal, Romania, Lithuania, Honduras, Russia, Turkey, Kazakhstan, Uzbekistan, Singapore, Philippine, Malaysia, Hong Kong, Indonesia, India, Pakistan, Nepal, Bangladesh, Kuwait, Syria, Burma, Thailand, Mongolia, Cambodia, South Africa, Nigeria, Kenya, Ethiopia, Tunisia, Uganda, Rwanda, UAE, Saudi Arabia, Malawi, Gabon, Morocco, Namibia, Ghana, Mali, Egypt, Argentina, Mexico and etc, more than 60 countries.
