Brand Name : | SECUPLUS |
Model Number : | SPW-ⅢDT |
Certification : | CE ISO |
Price : | Negotiable |
Payment Terms : | L/C, L/C, T/T, Western Union |
Supply Ability : | 500 sets per month |
Delivery Time : | within 3 working days after receive your payment |

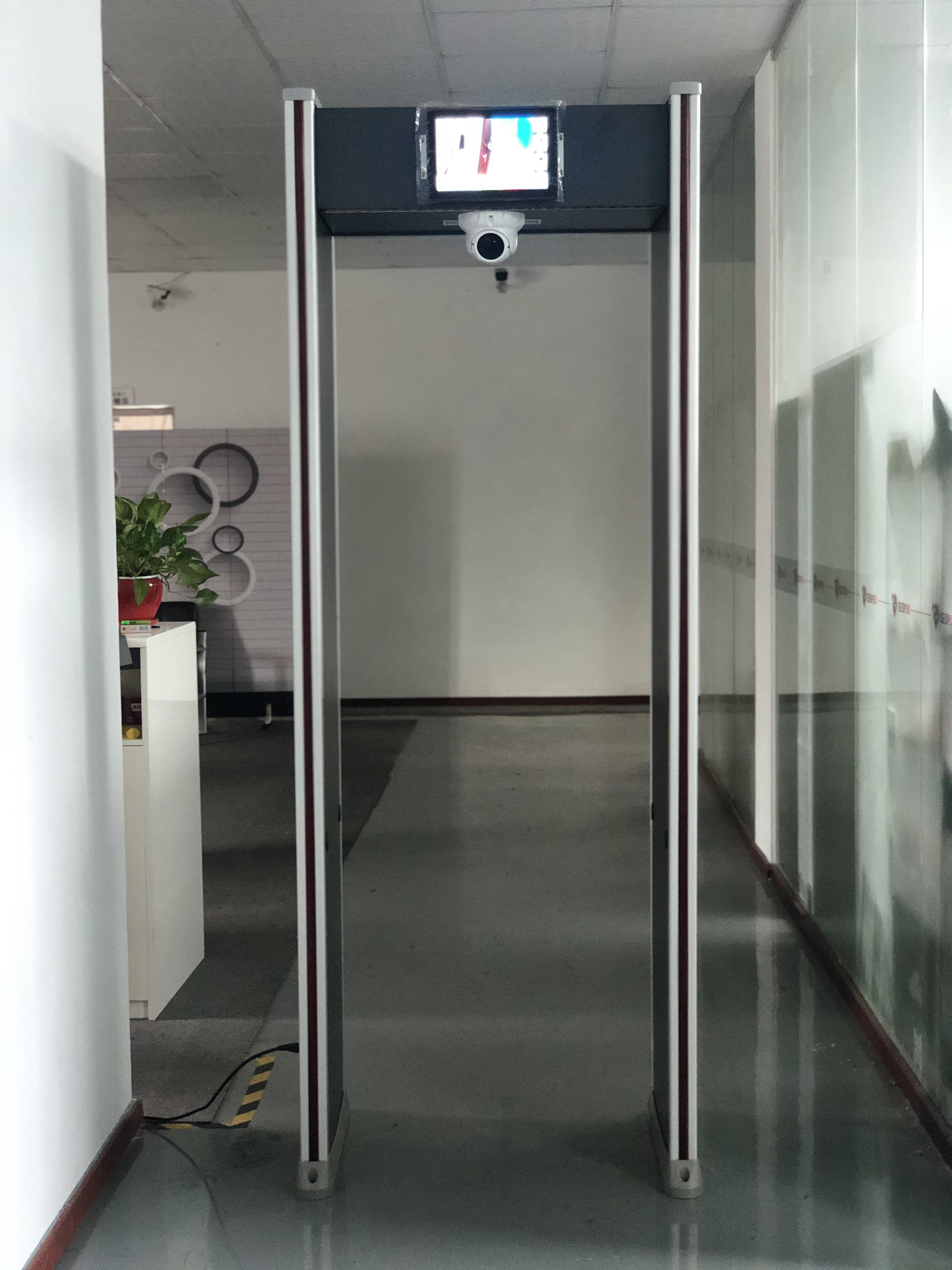

Arched Metal Detector Walk Through Gate With Thermal Imaging Camera And Display
Model: SPW-IIIDT
Alarm for Metal threats:
Alarm for Fever Visitors:
Characteristic
Thermal Camera:
Basic data | Visible light imaging: -40℃-80℃ |
Infrared thermal imaging: -10℃-75℃ | |
Power: USB supply 5v+/- 10% | |
Power consumption: <1.6W | |
Infrared thermal camera | Silicon oxide un-cooled infrared focal plane detector |
Maximum image size: 356*192 | |
Angle of view: 57 degree | |
Wave band: 8μm~14μm | |
Brand: Onsen from USA | |
Visible light camera | Sensor: 1080P |
2 milion pixels | |
Angle of view: 60 degree | |
Temperature measurement range: 30℃-45℃ (deviation < 0.3℃) |
Monitor:
Color LED, high resolution, high contrast, high brightness, fast response,
no flickering screen, accurate tracking of moving objects.
Size | 10.1 inch(16:10) |
Resolution | 1280*800 |
Contrast | 500:1 |
Brightness | 300cd/m2 |
Interface | VGA/HDMI/AV/BNC/USB |
Color system | PAL/NTSC |
Temperature | Operating 0℃-50℃,storage:-20℃-80℃ |
Power | 12V DC 2.0A |
Power consumption | 10W |
Size | 246*169*32mm |
Technical specification
Electrical current | AC100V~240V 50/60Hz |
Power | 10W |
Work environment | -20℃~+45℃ |
Gross Weight | 70kg |
Outer frame | 2220mm (h) x 820mm (w) X 522mm (d) |
Inner frame | 2000mm (h) X 700mm (w) X 522mm (d) |
![]() |
