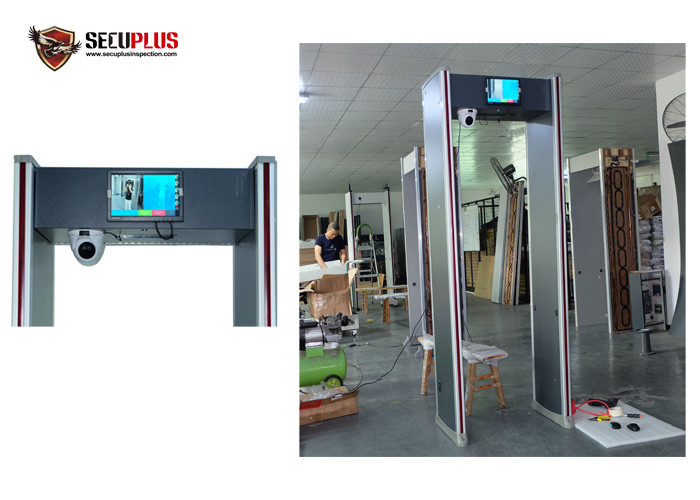

Walk through metal detector with thermal temperature camera with
alarm for fever person
- Fast broadcast visitor temperature;
- Smooth Traffic, no need to wait;
- Automatically track moving people faces.
Specical features:
1. Keep terrorists & corona virus carriers out of Gate
2. Stop terrorists: Alarm for all Metal threats
3. Prevent Epidemic: Alarm for Fever Visitors
4. auto and quick check pass person body temperature and show on
the screen
5. non-contact detection to avoid affection
6. English and French voice alarm when body temperature is over 37
degree
7. audio and visual alarm for fever person
8. alarm when temperature is over 37 degree
Feature highlights
- Accurate detection of magnetic, non-magnetic and mixed-alloy
weapons
- Multi-Zone operation and visualization of the detected weapons
- Very high immunity to electromagnetic and mechanical interferences
- Very high reliability and performance consistency
- Built-in daily test feature
- Comprehensive auto diagnostic capability
- Automatically detect temperature, no need operator;
- Quick response, detect body temperature in 1 second;
- Audible alarm for high temperature passengers;
- Non-contact temperature sensor, avoid cross infection;
- Environmental adaptability, can work at -10℃ location;
- Intelligent software, can prevent false alarm caused by high
temperature and direct sunlight;
- Can detect ferrous and non-ferrous metal articles.
- 7*24h Non-stop working
- Easy installation
Temperature thermal camera
Basic data:
- Temperature:
Visible light imaging: -40℃-80℃
Infrared thermal imaging: -10℃-75℃
Ø Power: USB supply, 5V +/-10%
Ø Power consumption: <1.6W
Infrared thermal Camera:
Ø Silicon oxide un-cooled infrared focal plane detector;
Ø Maximum image size: 256*192
Ø Angle of view: 57 degree
Ø Wave band: 8μm～14μm
Ø Brand: Onsen from USA
Visible light Camera:
Ø Sensor: 1080P
Ø 2 million pixels
Ø Angle of view: 60 degree
Ø Temperature measurement range: 30℃-45℃ (deviation < 0.3℃)
Temperature monitor
Color LED, high resolution, high contrast, high brightness, fast response, no flickering screen, accurate tracking of moving
objects.
Ø Size; 10.1 inch (16:10);
Ø Resolution: 1280x800
Ø Contrast: 500:1
Ø Brightness: 300cd/m2
Ø Interface: VGA/HDMI/AV/BNC/USB
Ø Color system: PAL/NTSC
Ø Temperature: Operating: 0℃-50℃,storage:-20℃-80℃
Ø Power: 12V.DC.2.0A
Ø Power consumption: 10W
Ø Size: 246*169*32mm
Technical Sheet :
* 6,12,18 Pinpoint zones to precisely identify multiple target
locations from head to toe.
* Advanced broadband detection technology: can detect ferrous and
non-ferrous articles.
* Sensitivity adjustable from Level 0 to 299
High: Can detect a pin
Low: Detect big metal articles such as: knife, gun, and copper,
aluminums, zinc (more than 150g), ignoring metal in belt button,
shoes.
* Shock proof to avoid false alarm
* Sound and light alarm
* 2 LED light bars on both door panels:gives alarm corresponding to
the height or human body.
* Tamper-Proof: operate program is protected by password.
* Adjustable operating frequencies---eliminate the potential
effects from X-ray units, radios and other electrical interference
sources.
* Mix distance between two Walk-thru: 0.3 meters at low
sensitivity, 0.5 meters at high sensitivity
* Harmless to pregnant woman and heart pacemaker
Specifications:
| Electric current: | AC100V~240V 50/60Hz |
| Power: | 10W |
| Work environment: | -20℃~+45℃ |
| Gross Weight: | 70kg |
| Outer frame: | 2220mm (h) x 820mm (w) X 522mm (d) |
| Inner frame: | 2000mm (h) X 700mm (w) X 522mm (d) |
Alarm for Fever Visitors: | |
Alarm value adjustable | Suggest :37.0℃ |
Temperature deviation: | 0.2-0.5 ℃ |
Distance: | 1-20CM |
Test Speed: | <1 Second |
Working temperature: | -10 to 50 ℃ |
