Indoor use walk through metal detectors SPW-IIIC for
Hospital/Bank/Hotel use
Stable performance, 6-12-18 zones options
Extremely high sensitivity to find even tiny threats
Two LED lights bars show threats location on human body
Sound and light alarm
For indoor use only
Technical specification
| Electrical current | AC100V~240V 50/60Hz |
| Power | 10W |
| Work environment | -20℃~+45℃ |
| Gross Weight | 90kg |
| Outer frame | 2220mm (h) x 820mm (w) X 522mm (d) |
| Inner frame | 2000mm (h) X 700mm (w) X 522mm (d) |
Characteristic
Two LED light bars on both door panels: gives alarm corresponding
to the height or human body.
6/12/18 Pinpoint zones to precisely identify multiple target
locations from head to toe.
Advanced broadband detection technology: can detect ferrous and
non-ferrous articles.
Sensitivity adjustable from Level 0 to 299
High: Can detect a clip
Low: Detect big metal articles such as: knife, gun, and copper,
aluminums, zinc (more than 150g), ignoring metal in belt button,
shoes.
Shock proof to avoid false alarm
Sound and light alarm
Intelligent traffic and alarm counters that calculate traffic flow
and resultant alarms.
Tamper-Proof: operate program is protected by password.
Adjustable operating frequencies---eliminate the potential effects
from X-ray units, radios and other electrical interference sources.
Mix distance between two Walk-thru: 0.3 meters at low sensitivity,
0.5 meters at high sensitivity
Harmless to pregnant woman and heart pacemaker
Remote control(optional)
(Optional)Connect with computer, camera, turnstile, etc
Standards &Certificates
CE
ROHS
FCC
ISO
Related Products

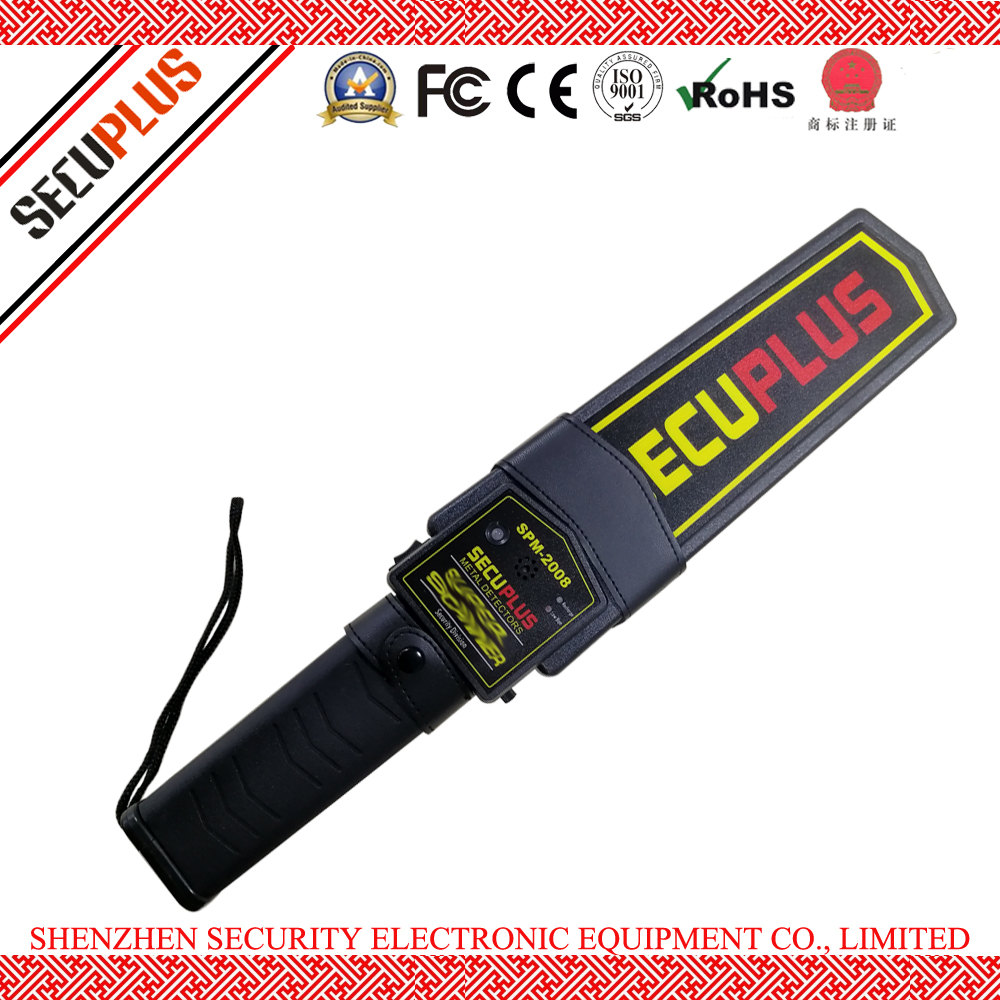

Hand Held Metal Detectors SPW-IIIC for Public Security Check
X-ray Baggage Scanner SPX5030C
| Tunnel Size | 500mm×300mm |
| Conveyor Speed | 0.23m/s |
| Conveyor height | 670mm |
| Conveyor Max Load | 170kg |
| X ray Dose per inspection | X ray Dose per inspection |
| Wire Resolution | 38AWG Guarantee 40 AWG tapical |
| Spatial resolution Level | dia1.0mm,Vertical: dia1.0mm |
| Penetration | 34 mm steel guarantee |
| Film Safety | Guarantee ASA/ISO1600 Film |
| Penetration Resolution | 32AWG ,the wire visible below 22mm thick aluminum |
| X-ray Leakage | <0.1 μGVy/h (at a distance of 5cm From external housing) |
