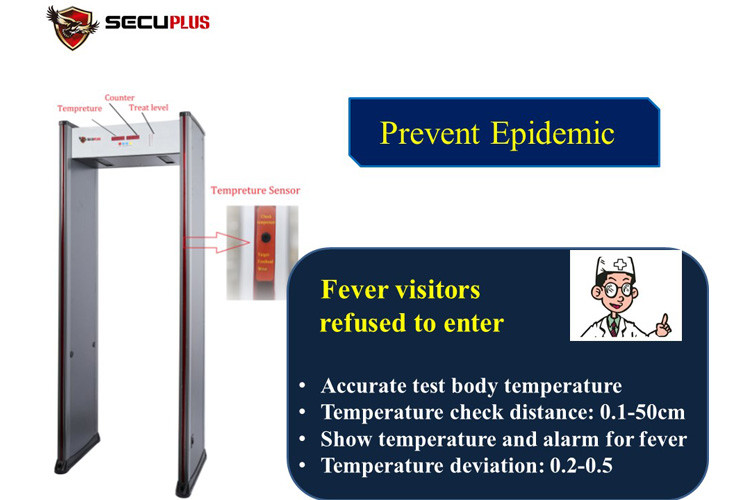

18 Zones Security Walk Through Matal Detector With Infrared
Thermometer
Check Body temperature:
Check : Forehead center or wrist
Deviation: 0.2℃~+0.5℃
Distance: 0.1-50CM
Best Distance: 0.1-10CM
Alarm for fever passenger
Alarm value adjustable (Suggest 37.0℃)
Extremely high sensitivity to detect tiny threats
Search for threats:
Stable performance, 6/18 zones options
Extremely high sensitivity to find even tiny threats
Two LED lights bars show threats location on human body
Sound and light alarm
For indoor use only
Technical specification
| Electrical current | AC100V~240V 50/60Hz |
| Power | 10W |
| Work environment | -20℃~+45℃ |
| Gross Weight | 70kg |
| Outer frame | 2220mm (h) x 820mm (w) X 522mm (d) |
| Inner frame | 2000mm (h) X 700mm (w) X 522mm (d) |
Characteristic
Two LED light bars on both door panels: gives alarm corresponding
to the height or human body.
6/18 Pinpoint zones to precisely identify multiple target locations
from head to toe.
Advanced broadband detection technology: can detect ferrous and
non-ferrous articles.
Sensitivity adjustable from Level 0 to 300
High: Can detect a clip
Low: Detect big metal articles such as: knife, gun, and copper,
aluminums, zinc (more than 150g), ignoring metal in belt button,
shoes.
Shock proof to avoid false alarm
Sound and light alarm
Intelligent traffic and alarm counters that calculate traffic flow
and resultant alarms.
Tamper-Proof: operate program is protected by password.
Adjustable operating frequencies---eliminate the potential effects
from X-ray units, radios and other electrical interference sources.
Mix distance between two Walk-thru: 0.3 meters at low sensitivity,
0.5 meters at high sensitivity
Harmless to pregnant woman and heart pacemaker
Remote control(optional)
(Optional)Connect with computer, camera, turnstile, etc
Standards &Certificates
CE
FCC
ROHS
ISO
Our service
All products purchased in our company are guaranteed to keep in
good repair for one year.
If quality problems happen in guarantee period, our company will
maintain for free. Additionally, our company provides technical
support and fittings for life.
After-sales service isn't restricted by time and we will assign
technical personnel to solve your problems immediately after
receiving telephone and hear feedback idea of users and deal with
them in time.
If you are caught in some problems when using our products, welcome
to contact us at any time.
Related products: X-ray Baggage Scanner SPX5030A
| Tunnel size | 504*320mm (w*h) |
| Conveyor speed | 0.20m/s |
| Conveyor height | 693mm |
| Max Load | 100kgs |
| Wire Resolution | 38AWG |
| Spatial resolution | vertical:diameter 1.0mm,horizontal:diameter 1.0mm |
| Penetration | 10mm steel panel |
| Monitor | 17inch,resolution 1280*1024 |
| X Ray generator anode voltage | 80KV |
| Cooling/operation cycle | Oil Cooling /100% |
| X ray Dose per inspection | <0.16 μSv
|
| Image processing | Pseudo color/black & white image,Negative Image, High Penetration,
Super-enhancement, histogram equalization, check back/forward,
Automatic save image |
| Zoom | Variable zoom up to X32, support continuous magnification. |
| Image Checking | Continuous check back image |
| Storage capacity | Can store more than 100000 image |
| Dose per inspection | <0.125 μSv |
| Radiation leakage | <0.4 μSv/h(5cm away from fame),in full compliance with all
international radiation safety requirements. |
SECURITY ELECTRONIC EQUIPMENT CO.LTD.
Our core competencies is
X ray Baggage Scanner
X-ray Vehicle Scanner
Under Vehicle Surveillance System
Walk Through Metal Detectors
Hand Held Metal Detector
Explosives & Drug Detector
Dangerous Liquid Scanner and Turnstiles with very competitive
advange.
Shipping and packing
